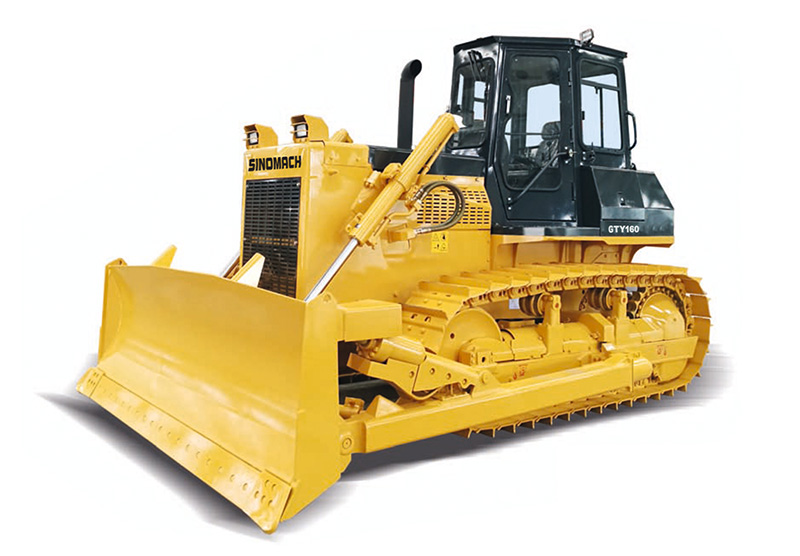

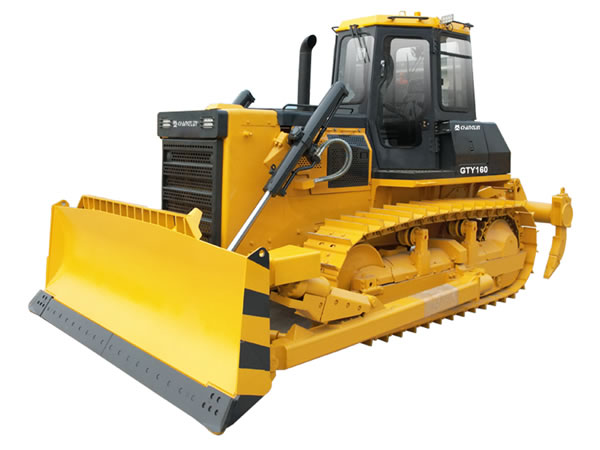

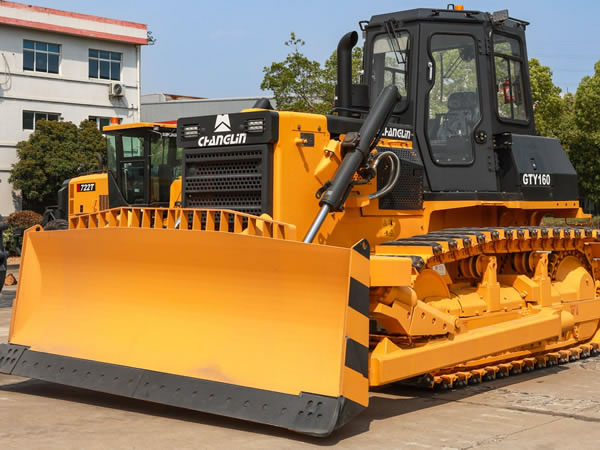

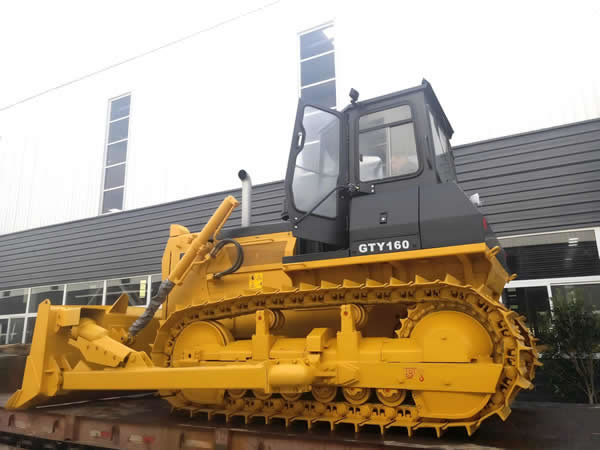

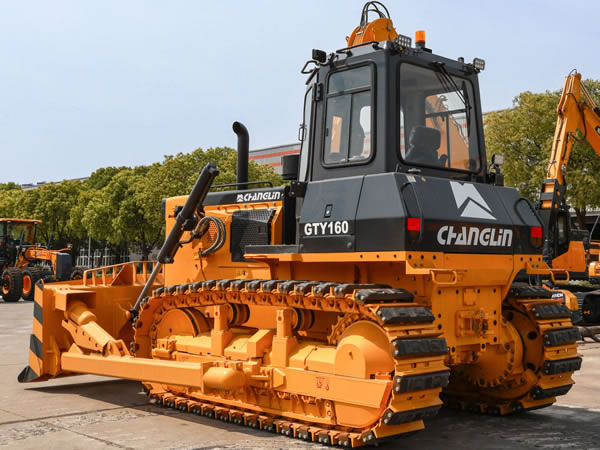

Hydraulic Bulldozer GTY160

The GTY160 hydraulic bulldozer is mainly used for pushing, excavation, backfilling, and other earthmoving operations involving bulk materials in road, railway, mining, airport, and other construction projects. It is an indispensable machine for national defense projects, mining operations, urban and rural infrastructure construction, and water conservancy projects.

  • Operating Weight: 16.4T
  • Rated Power: 160HP
  • Max. Traction Force: 146KN
Inquiry
Video
Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
    • Specifications
    Model GTY160
    Engine model WeichaiWD10G178E25
    Displacement 9.726 L
    Rated power 160/1850 HP/rpm
    Max. torque 830/1000-1200 N.m/rpm
    Operating weight 16.4 T
    Dimension (no ripper) 4990×3440×3110 mm
    Min. ground clearance 405 mm
    Ground pressure 0.067 MPa
    Track gauge 1880 mm
    Dozing capacity 4.55 m³
    Blade width 3440 mm
    Blade height 1135 mm
    Max. drop below ground 540 mm
    Track shoe width 510 mm
    Pitch 203.2 mm
    Quantity of track link 37
    Quantity of carrier rollers 4
    Quantity of track rollers 12（8Double+4Single）
    Max. pressure 14 MPa
    Discharge 213 L/min
    Max. tractor force 146 KN
    Gradeability 30°
    Forward speed F1:0-3.29 km/h
    F2:0-5.82 km/h
    F3:0-9.63 km/h
    Reverse speed R1:0-4.28 km/h
    R2:0-7.59 km/h
    R3:0-12.53 km/h
    Main Features

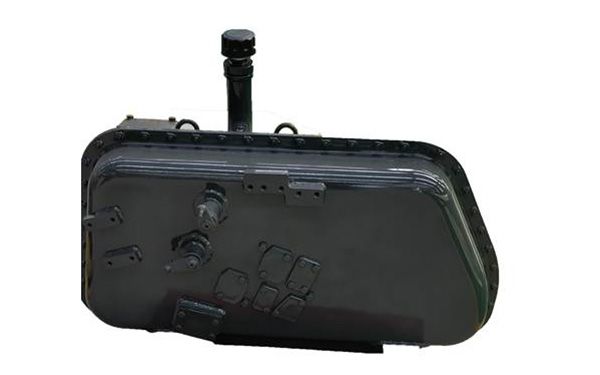

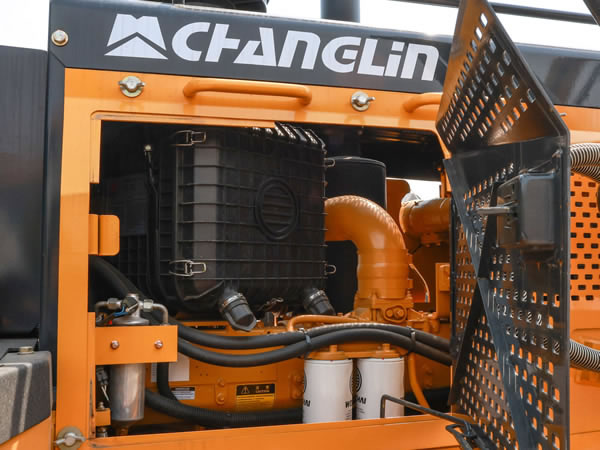

    • The closed system keeps the tank pressure at a specific value, which can increase the evaporation temperature and heat dissipation efficiency of the cooling water. The fan power comes from the engine, and the forced air supply increases the cooling effect.
    • The 14 MPa hydraulic system features overload protection, helping to reduce the risk of hydraulic component failure and improve overall system reliability.

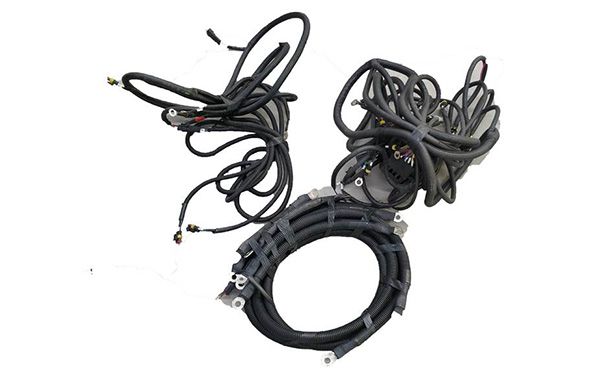

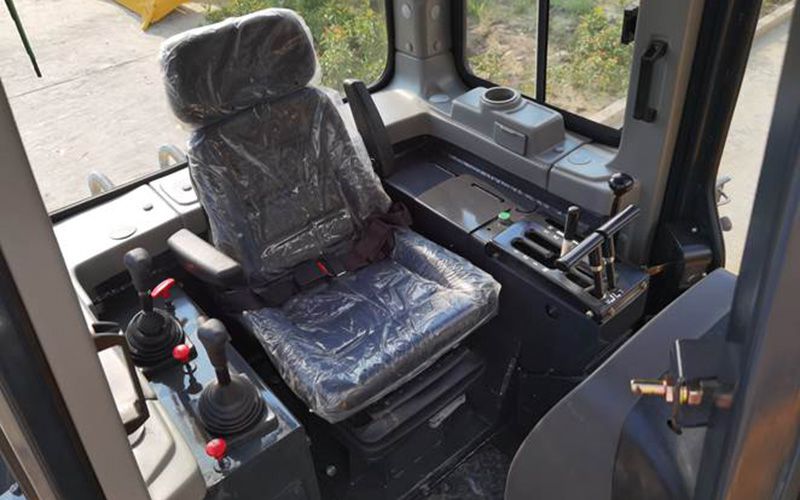

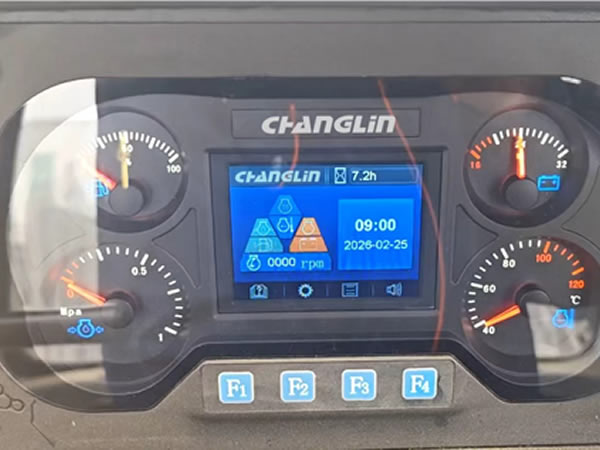

    • The hydraulic bulldozer is equipped with waterproof electrical connectors throughout, upgraded relays, and an injection-molded instrument panel to improve the reliability of the electrical system. The integrated instrument console combines the air conditioning controls, electrical controls, and instruments into a single unit, providing a cleaner layout, improved operator convenience, and enhanced operating comfort.
    • The main frame features an integral full box structure fabricated from welded steel plates and rigidly connected to the rear axle housing. This design provides excellent resistance to impact loads, bending, and torsional stress. High-quality welds ensure outstanding structural strength, durability, and a long service life.
    • The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling system to distribute the working load and impact load to the main frame during working, which effectively improves the stability of small-sized bulldozers under complicated working conditions.

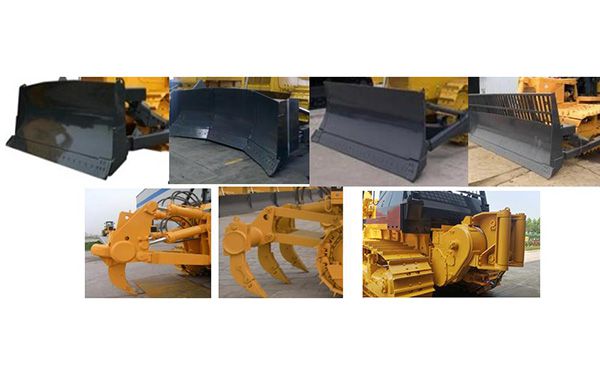

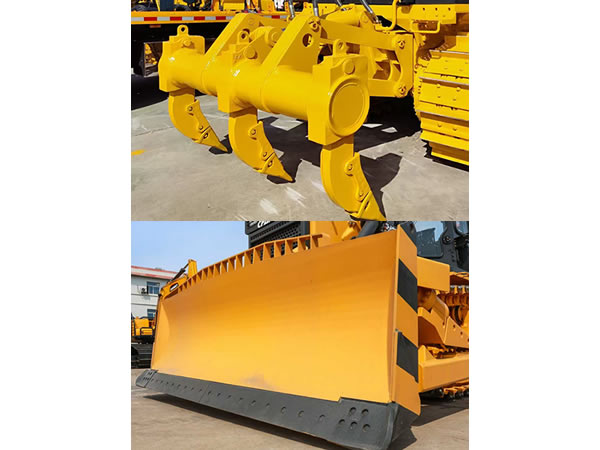

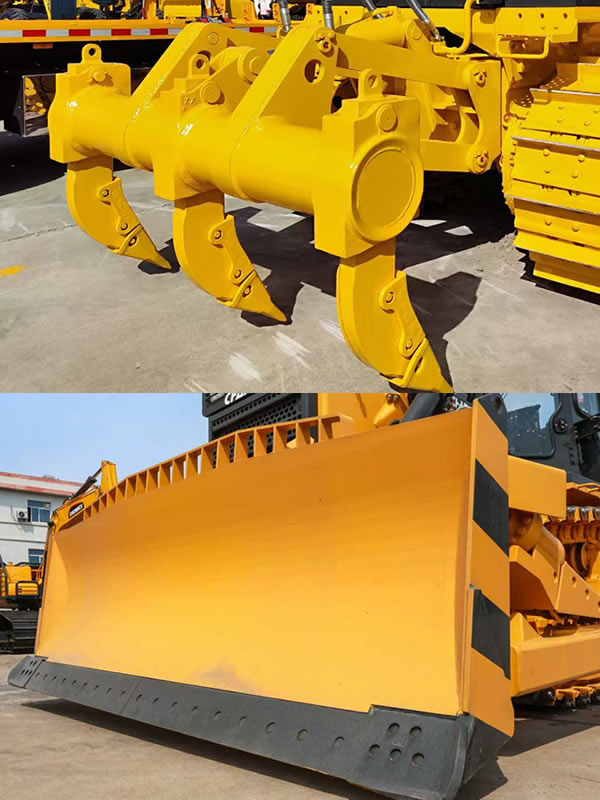

    • The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force
