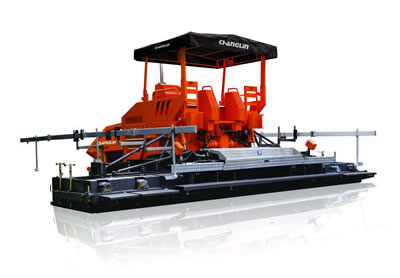

CLPSE90 Asphalt Paver

CLPSE90 Asphalt Paver

This product has been discontinued and removed from our shelves.

Features of Asphalt Paver
1. Hydraulically powered asphalt paver is controlled via a micro-computer to deliver a constant speed. Digital display and fault diagnosis functions are available.
2. Ultrasonic waves are used to control the amount of material in the hopper and conveyor, preventing segregation of the concrete mix.
3. Self-leveling screed unit ensures flatness of resulting mat.
4. Reinforced screed plate provides extra vibration to pre-compact the mat.
5. Anti-fall feature prevents screed plate from falling during paving.
6. Centralized lubrication system purchased from German Lincoln keeps hot and movable parts well lubricated.
7. Key parts are imported from oversea countries.
8. Ergonomic design improves driving comfort.

Technical Specification:
Model CLPSE90
Length×Width×Height(mm) 7048×3182×2900
Total weight(t) 25-29.5
Diesel engine type ShangChai D6114ZG1B
Rated output(KW) 140
Basic paving width(mm) 3000
Maximum paving width(mm) 9000
Maximum thickness of paving (mm) 320
Minimum thickness of paving (mm) 20
Traveling speed(Km/h) 0-2.9
Paving speed(m/min) 0-19
Hopper capacity(t) 14
